Naim NAT05 XS FM Tuner
Free UK Delivery
Discontinued

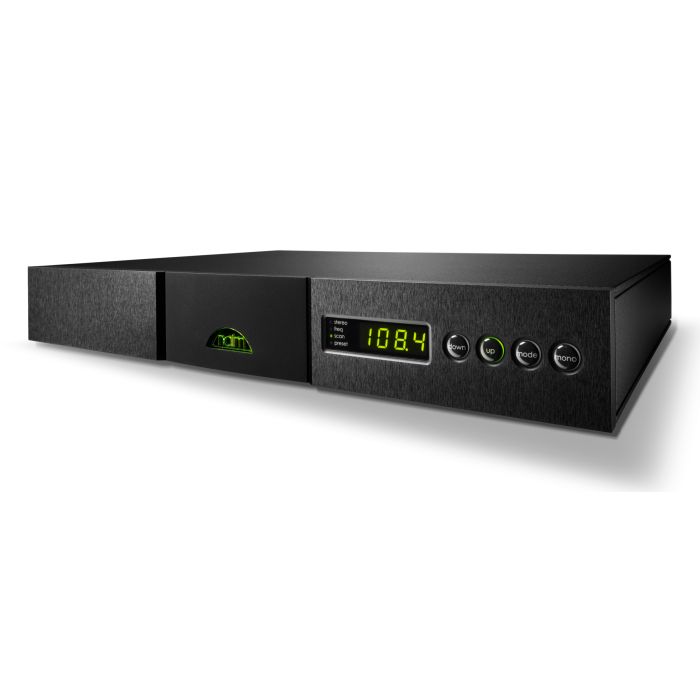

Naim NAT05 XS FM Tuner
Naim are no new name to the world of specialist hifi, having developed some of the most critically acclaimed components available for many years. all of their traditional hifi separates are built here in the UK by specialist, Naim-specific engineers to the highest possible standard.
The NAT05 XS FM tuner is no exception to this, and easily upholds the same reputation as any unit built and designed by the experts at Naim. It's been designed to match the other XS Series components, both aesthetically and acoustically. It features a high-performing ALPS tuner head, and when paired with a good quality roof aerial will ensure a truly superlative sound response and wide reception.
Naim have a fruitful history in radio. Their NAM 502 loudspeaker was built and designed specifically in 1973 for a start-up radio station, that later went on to become the famous Capital Radio. Naturally, Naim began to design tuners that would capture and preserve every element of the format. Naim recognise the importance of a radio broadcast and the importance of keeping this signal as pure and as musical as possible.
| Antenna | FM |
| Tuning Range | FM 87.5 - 108MHz |
| Analogue Outputs | DIN, RCA |
| Line Outputs Fixed (level) | 600mV RMS at 100% modulation |
| Line Outputs Fixed (level) | 100Ω (max.) |
| Minimum Load Impedance | 10kΩ |
| THD | <0.8% |
| Signal-to-Noise Ratio | 67dB at 1mV RF input level |
| De-emphasis | 50μs for 230V or 75μs for 115V |
| Power Supply Upgrade | FlatCap XS, HiCap, SuperCap |
| Remote Control | Infra Red (RC5) |
| Remote Input | 1 x 3.5mm jack on rear (RC5 modulated/unmodulated) |
| User Control (Front panel) | Four button matrix |
| Mains Supply | 115V, 230V; 50 or 60Hz |
| Power Consumption | 15VA |
| Dimensions (Height x Width x Depth) | 70 x 432 x 301 mm |
| Weight | 5.5 kg |
