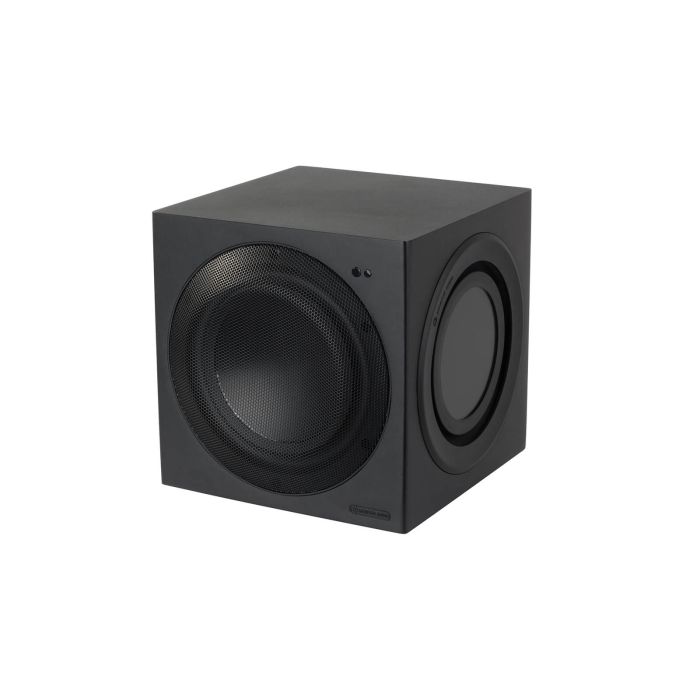

Monitor Audio CW8 Subwoofer
Free UK Delivery
Discontinued
£599.00
Monitor Audio CW8 Subwoofer
- Stereo RCA Line-Level Input -
- High-power Class-D amplifier delivering 400 watts -
- RS-232 for integration with system controllers -
- Ultra-compact ‘cube’ shape designs -
- High excursion woofers featuring signature C-CAM cone technology -
The Monitor Audio CW8 - Engineered for control in operation, bass quality and concealment in-room, although this sub is rather compact, don't let that fool you as this will add some explosive bass frequencies to music and AV systems, if you're looking for that extra edge in performance, look no further than the CW8. The compact rigid 18 mm MDF cubic cabinets with regular 25.5 cm dimensions incorporate no fewer than three robust, similarly-sized 8" C-CAM drivers. Each system array comprises an active high-excursion drive unit powered and trimmed by potent DSP-tuned amplification, together with twin side-mounted ABRs (Auxiliary Bass Radiators).
Here are some key features about the CW8 if you wish to read them.
- Twin side-mounted ABRs for increased output and reduced distortion. Higher output than a sealed box and better control and zero air noise compared to a ported box
- High-power Class-D amplifier delivering 400 watts
- DSP processing –all functions performed in the digital domain for precise control
- SubConnect’ PC Applet for full feature adjustment, installer set-up and firmware update using USB
- LFE Balanced XLR and unbalanced RCA Inputs
- Phase switch (0-180 degrees)
- 12 V trigger and auto signal sensing with timer control
- 4 x pre-set equalisation optimised for music, movie, flat and impact with customisation through ‘SubConnect’ Applet
- Robust metal mesh grille on the front woofer
- Rigid MDF cabinet construction with durable vinyl finish
tarted in 1972 by the charismatic Mo Iqbal, Monitor Audio began loudspeaker design and production using tried and tested methods available at that time - plastic cone materials, fabric dome tweeters and reflex loaded braced cabinets. The speakers were welcomed by enthusiasts both in the UK and throughout the World.
Following a management buyout in the 1980s, over the next decade, Monitor Audio expanded its speaker ranges into stereo, surround and in-ceiling/ in-wall plus outdoor speakers to meet the needs of a more diverse, emerging market. At the same time, it embraced metal C-CAM driver technology which can respond to audio signals more faithfully than traditional materials, thanks to its inherent strength and rigidity.
The current Monitor Audio range of speakers is a very successful line-up including the entry-level Bronze range, mid-market Silver series using C-CAM drivers, the new Gold range delivering high-end performance and lastly the Platinum II range for those buyers who do not wish to compromise sound quality.
| System Format | Active sub-woofer system – twin ABR. 18 mm MDF cabinet (CARB2 approved) |
| Lower Frequency Limit | 35 Hz (-6 dB) |
| Amplifier Output | 350 W RMS @ < 1% THD+N |
| Maximum SPL | 105.8 dBA |
| Amplifier Classification | Class D amplifier with switch mode power supply (SMPSU) |
| Inputs | Stereo RCA LFE (RCA) LFE Balanced (XLR) |
| EQ | Flat/ Music/ Movie/ Impact |
| Phase Control | 0 & 180 degrees |
| Auto-Sensing | LFE Input <2mV Auto wireless audio input signal detection |
| Auto Standby | After approximately 15 minutes if no signal sensed Wireless audio source turned off |
| Drive Unit Complement | 1 x 8" (200 mm) C-CAM long-throw driver, 2 x 8" (200 mm) ABR |
| Input Impedance | > 20 ohms |
| Mains Input Voltage | 110 - 120 Vac / 220 - 240 Vac 50/60 Hz (Manual Switch selection) |
| Dimensions (Including Feet (H x W x D) | 270 x 260 x 276 mm (105/8 x 101/4 x 107/8") |
| Trigger Input | 5 - 12 V via 3.5mm mono mini-jack socket |
| Power Consumption | Standby: < 0.5 W (ErP approved) Typical Idle: < 10 W Max Rated: 400 W |
| Weight (unpacked) | 9.52 kg (21 lb) |
