Monitor Audio CLG-W12 Outdoor Sub-Surface Subwoofer

Monitor Audio CLG-W12 Outdoor Sub-Surface Subwoofer

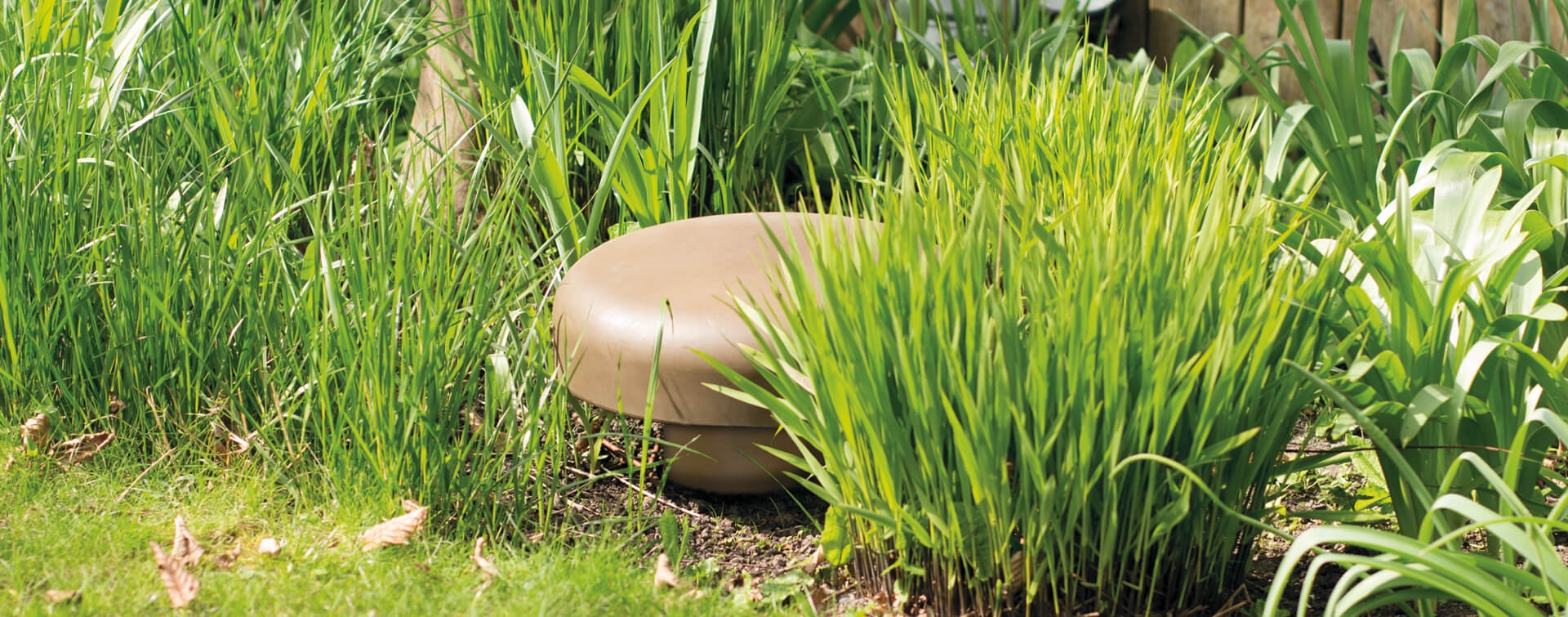

The CLG-W12 is a passive subwoofer. Optimised for discreet sub-surface installation, its proprietary Monitor Audio bandpass design incorporates an internally loaded 12" C-CAM driver which sits in a waterproof rotationally-moulded polymer enclosure buried below the garden surface - only the CLG-W12’s domed output port is visible.

From this little ‘chimney’ powerfully taut bass frequencies will join the clean mids and highs of the surrounding CLG140/CLG160 satellites for punchy and articulate full-range garden sound.

The CLG-W12 can be powered from a single amplifier channel at 4 ohms, with its 70/100 V line option recommended for cable runs over 10m (30ft) and for adding subwoofers to the system. In this line configuration, the CLG140/CLG160 satellites are daisy-chained to the CLG-W12, one after the other, up to a recommended maximum of twelve per subwoofer. System expansion to larger garden spaces simply involves the addition of amplifier channels, subwoofers and satellites.

In the simplest designs, satellites are connected in a mono configuration to one amplifier channel, the other channel powering the subwoofer. The use of a stereo power amplifier with 70/100volt line capability and crossover features will allow the adjustment of levels between bass and mid-high range. Alternatively, the system can be designed to provide stereo operation by adding elements to create left/right zones.

When installed the Climate Garden System delivers a smooth, wide-open and controlled frequency response from 30 Hz to 30 kHz in the targeted environment: better than many home audio systems! For patio or deck applications, the CLG-W12 will install within a planter box to enhance Monitor Audio’s CL Series all-weather cabinet speakers with deep bass frequencies, giving custom installers additional design options.

This Subwoofer is priced individually.

5 Year Warranty Included

Features:

• Below ground garden installation. On patios or decks will install within a suitably sized planter
• Extended response down to 30 Hz
• Long-throw 12" sub-woofer driver featuring C-CAM cone technology and rigid die-cast chassis
• Bandpass cabinet enclosure delivers high efficiency and punchy, extended bass
• 70/100 V and 4-ohm tap for flexible system design: additional units can be added and ‘daisy-chained’ together
• Robust moulded cabinet: strong and waterproof with fewer joints to compromise the structural integrity
• Certified to IP54 Ingress Protection rating
• Dark brown finish blends with garden colours
• Applications: garden, deck and patio, theme parks

Who is Monitor Audio?

Started in 1972 by the charismatic Mo Iqbal, Monitor Audio began loudspeaker design and production using tried and tested methods available at that time - plastic cone materials, fabric dome tweeters and reflex loaded braced cabinets. The speakers were welcomed by enthusiasts both in the UK and throughout the World.

Following a management buyout in the 1980s, over the next decade, Monitor Audio expanded its speaker ranges into stereo, surround and in-ceiling/ in-wall plus outdoor speakers to meet the needs of a more diverse, emerging market. At the same time, it embraced metal C-CAM driver technology which can respond to audio signals more faithfully than traditional materials, thanks to its inherent strength and rigidity.
