Audio Technica VM750SH Dual Moving Magnet Cartridge
Free UK Delivery
Discontinued
£374.00

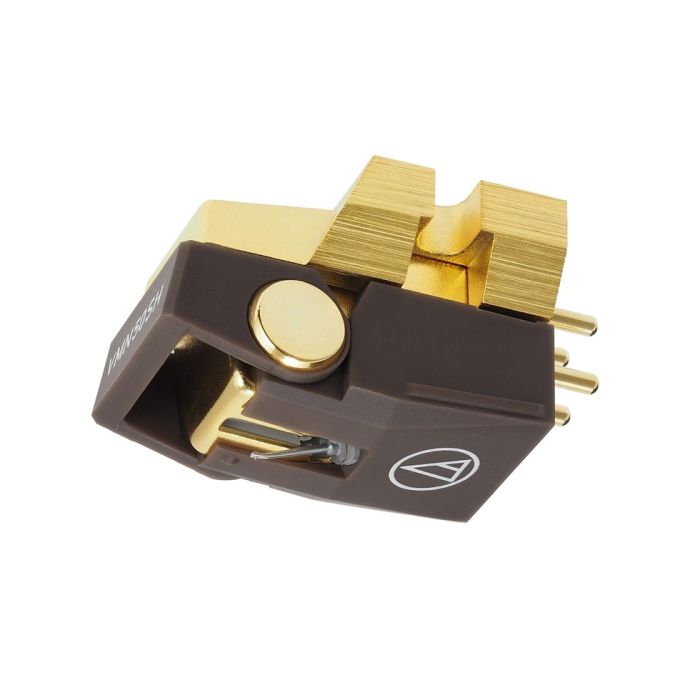

Audio Technica VM750SH Dual Moving Magnet Cartridge
The VM750SH is part of Audio Technica's new 'VM cartridge line' and this particular cartridge comes with a VM dual magnet cartridge with the Shibata stylus. The Shibata stylus provides a much greater surface contact with the record groove than the standard elliptical stylus you find on a lot of cartridges. You will find the Shibata stylus on the much higher end cartridges Audio Technica offer. This cartridge comes with an aluminium tapered cantilever and paraboloidal coils which help to generate efficiency dramatically. There is a centre shield plate between the left and right channels which helps reduce the crosstalk. The die-cast aluminium alloy housing reduces vibration and adds a natural electrical shield.
Who is Audio Technica?
Audio Technica is a quality audio component manufacturer, has designed and developed some of the most critically acclaimed headphones, turntables and cartridges on the market since their establishment in 1962. AT build products under a common design philosophy, to provide the most durable and high performing equipment at the best possible price.
| Frequency Response | 20-27,000 Hz |
| Channel Separation | 30 dB (1 kHz) |
| Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
| Stylus Construction | Nude square shank |
| Recommended Load Impedance | 47,000 ohms |
| Output | 4.0 mV (at 1 kHz, 5 cm/sec) |
| Channel Balance | 1.0 dB (1 kHz) |
| Stylus Shape | 2.7 x 0.26 mil Shibata |
| Cantilever | Aluminum tapered pipe |
| Mount | Half-inch |
| Coil Impedance | 2,700 ohms (1 kHz) |
| DC Resistance | 800 ohms |
| Load Capacitance | 100-200 pF |
| Coil Inductance | 460 mH (1 kHz) |
| Static Compliance | 40 x 10-6 cm/dyne |
| Dynamic Compliance | 10 x 10-6 cm/dyne (100 Hz) |
| Vertical Tracking Angle | 23° Dimensions: 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D |
| Weight | 8.0 g (0.3 oz) |
| Accessories Included | Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts, non-magnetic screwdriver, brush, lead wire set |
| Replacement Stylus | VMN50SH |
